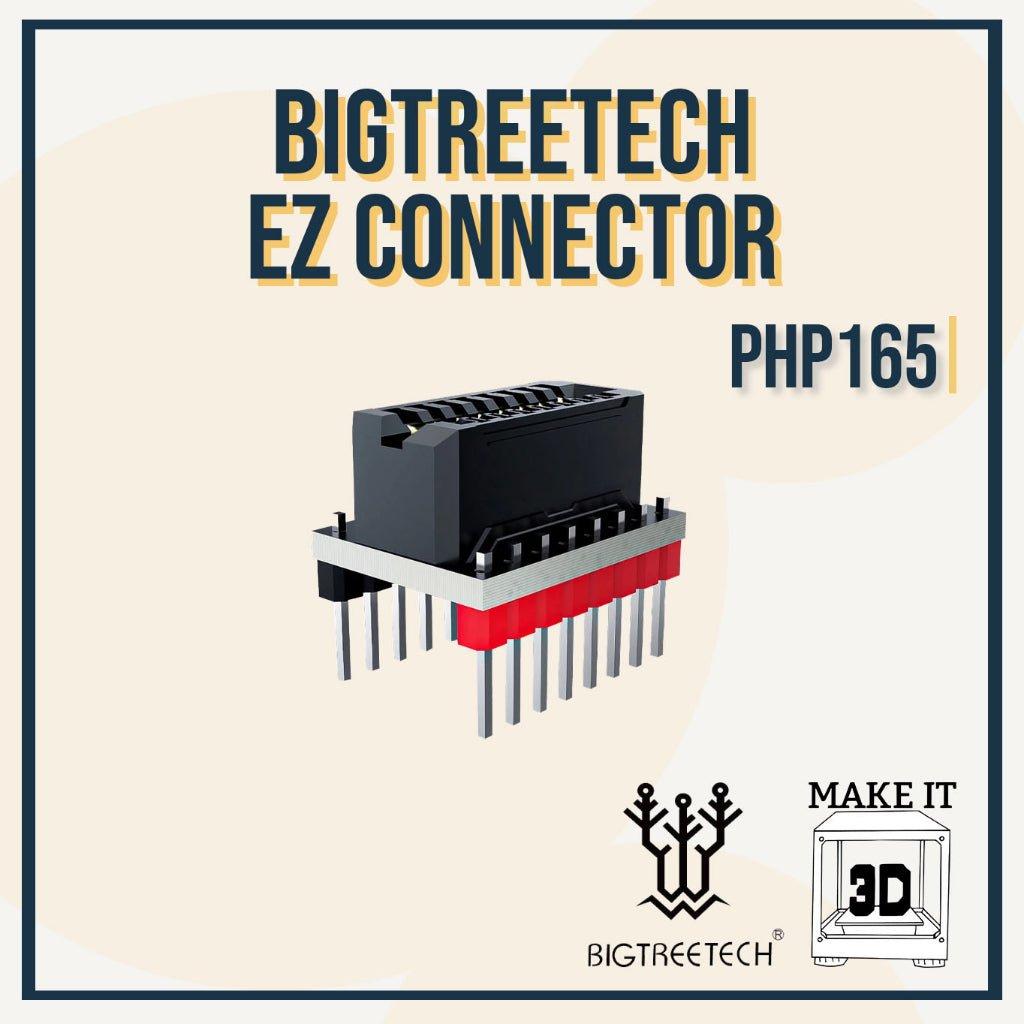

BTT BIGTREETECH TMC 2208 V3.0, EZ2208, EZ2225, EZConnector Stepper driver for 3D printer

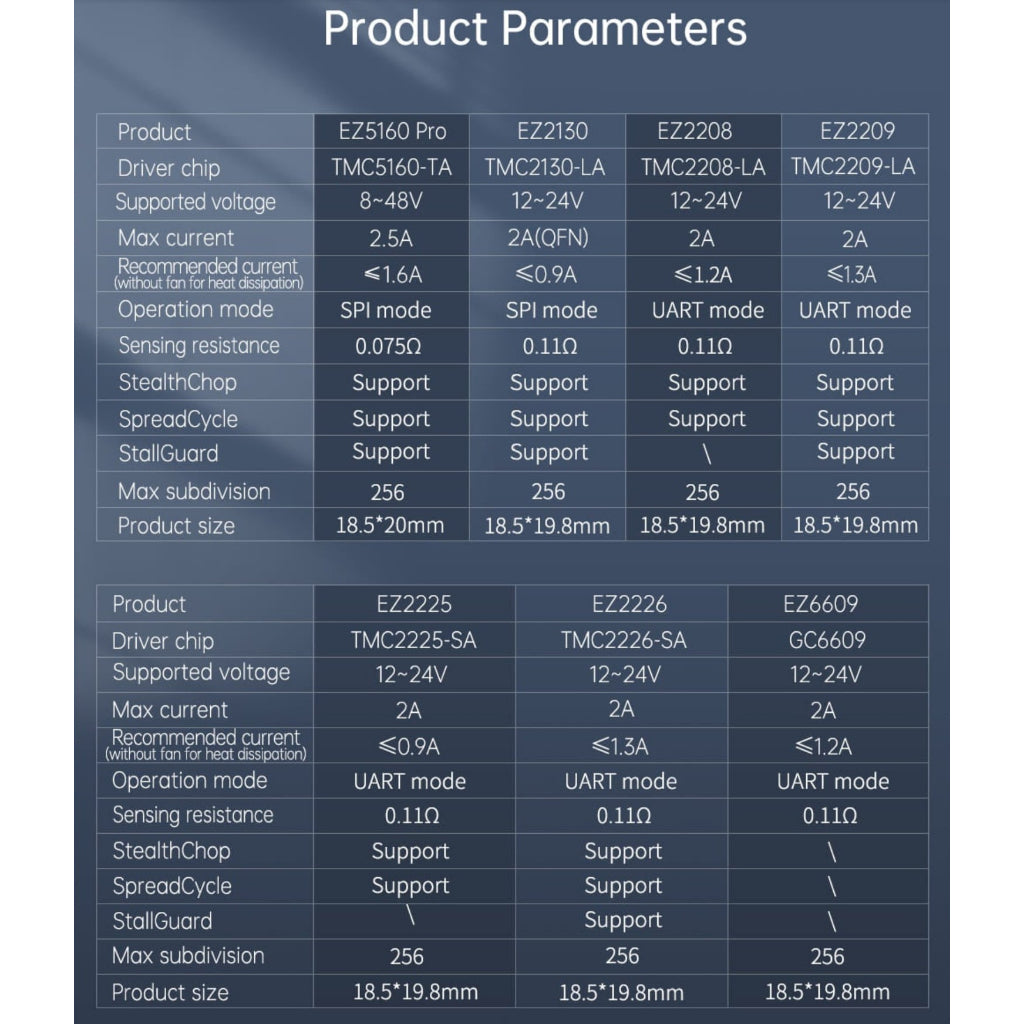

TMC2208 Technical specifications:
> Control signal level: 3 to 5.25V
> Operating voltage: 4.75-29V
> Maximum current per phase: 2.8A (peak) - 2A (RMS)
> Adjustable micro stepping: 1/1 to 1/64
> Interpolated micro stepping: 1/256
> Board version: V1.2
> Compatible with: SKR V1.3, SKR V1.4, SKR V1.4 Turbo, SKR V1.4 GTR

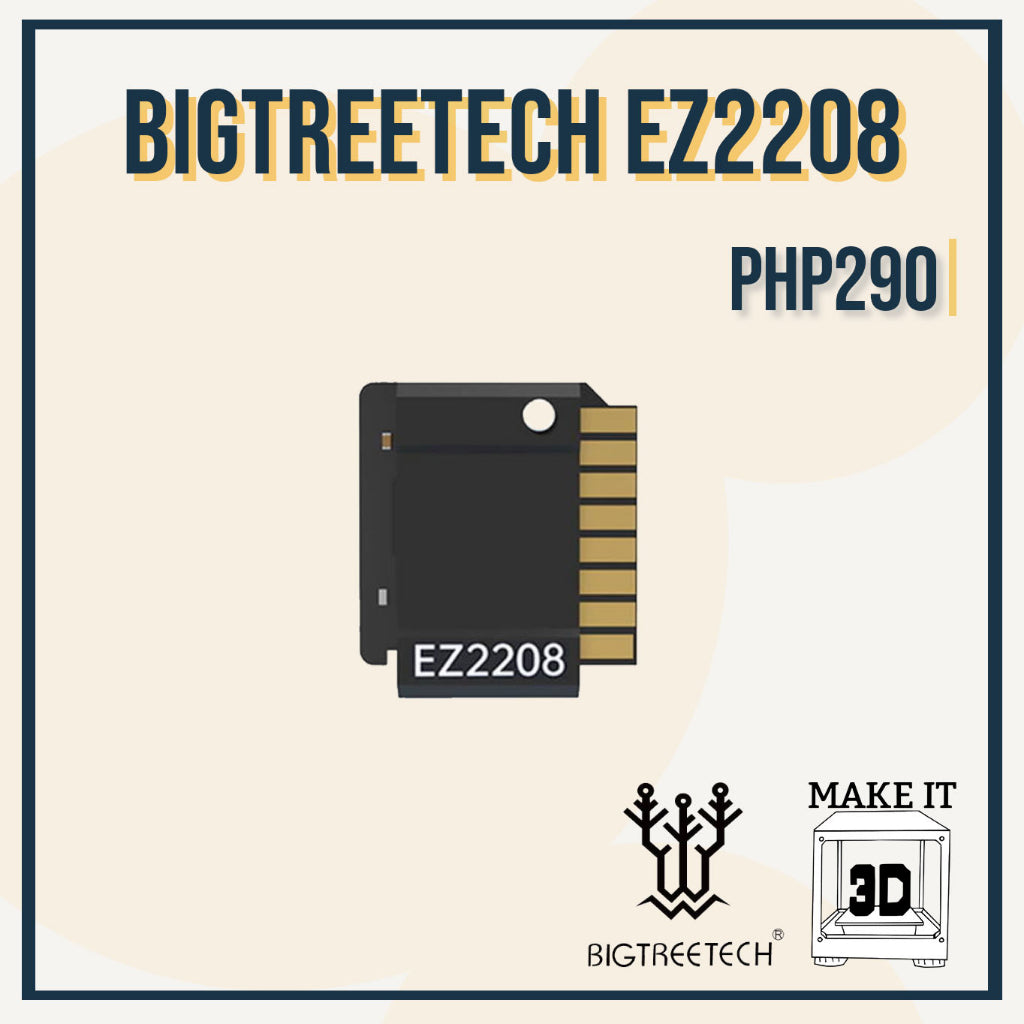

EZ2208
> Driver Chip: TMC2208-LA
> Supported Voltage: 12-24V
> Max Current: 2A
> Recommended Current: <=1.2A
> Operation mode: UART mode
> Sensing Resistance: 0.11ohms
> Stealth Chop: Support
> Spread Cycle: Support
> Max subdivision: 256
> Product Size: 18.5x19.8mm

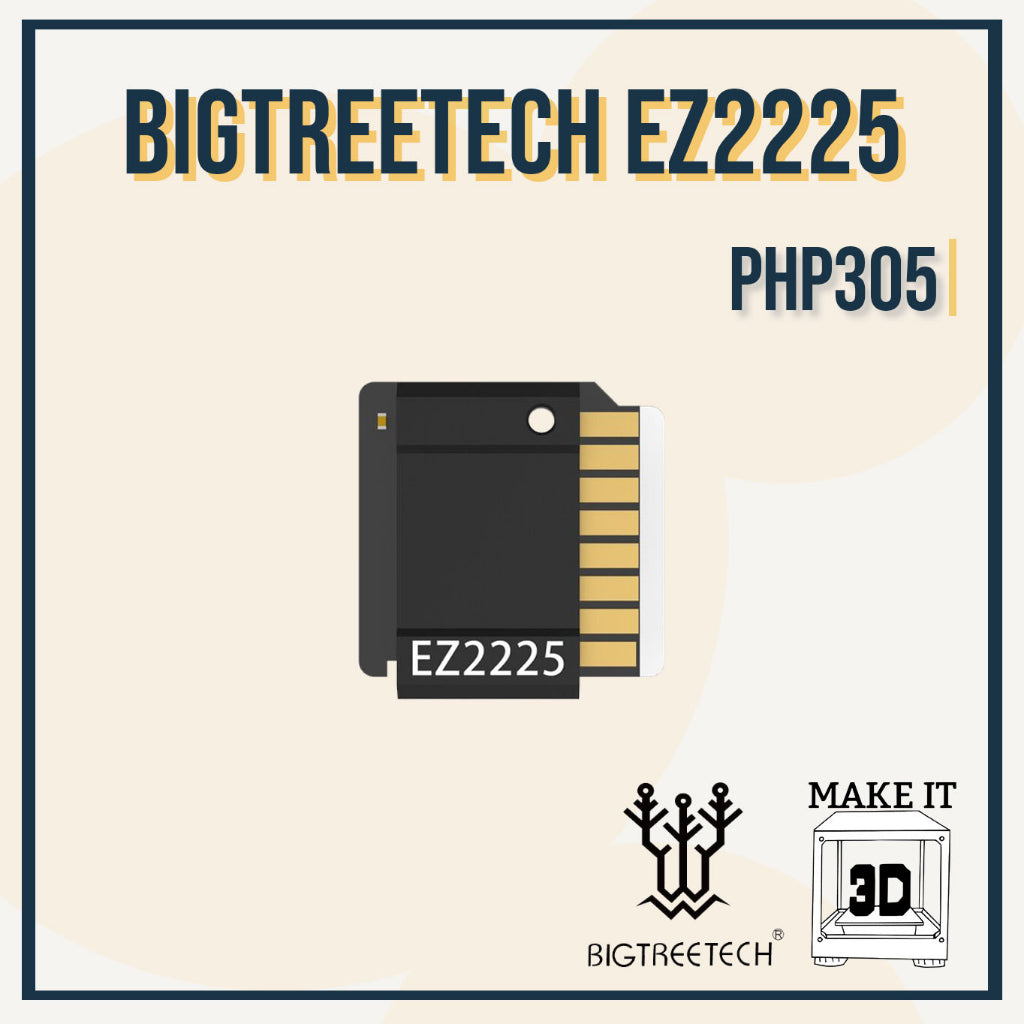

EZ2225
> Driver Chip: TMC2225-SA
> Supported Voltage: 12-24V
> Max Current: 2A
> Recommended Current: <=0.9A
> Operation mode: UART mode
> Sensing Resistance: 0.11ohms
> Stealth Chop: Support
> Spread Cycle: Support
> Max subdivision: 256
> Product Size: 18.5x19.8mm
