BTT BIGTREETECH TFT35 V3.0, TFT35 E3 V3.0, PITFT50 V2, TFT70-BX Touch Screen Display

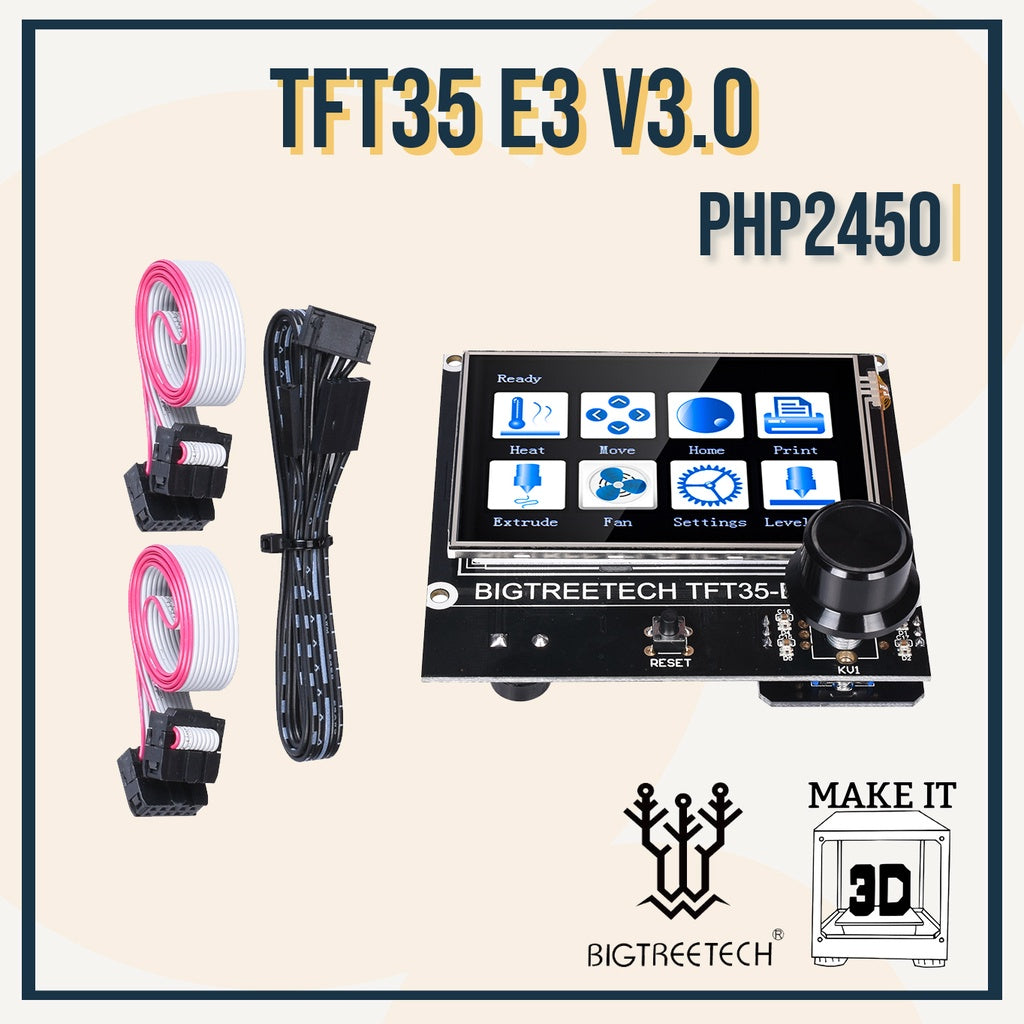

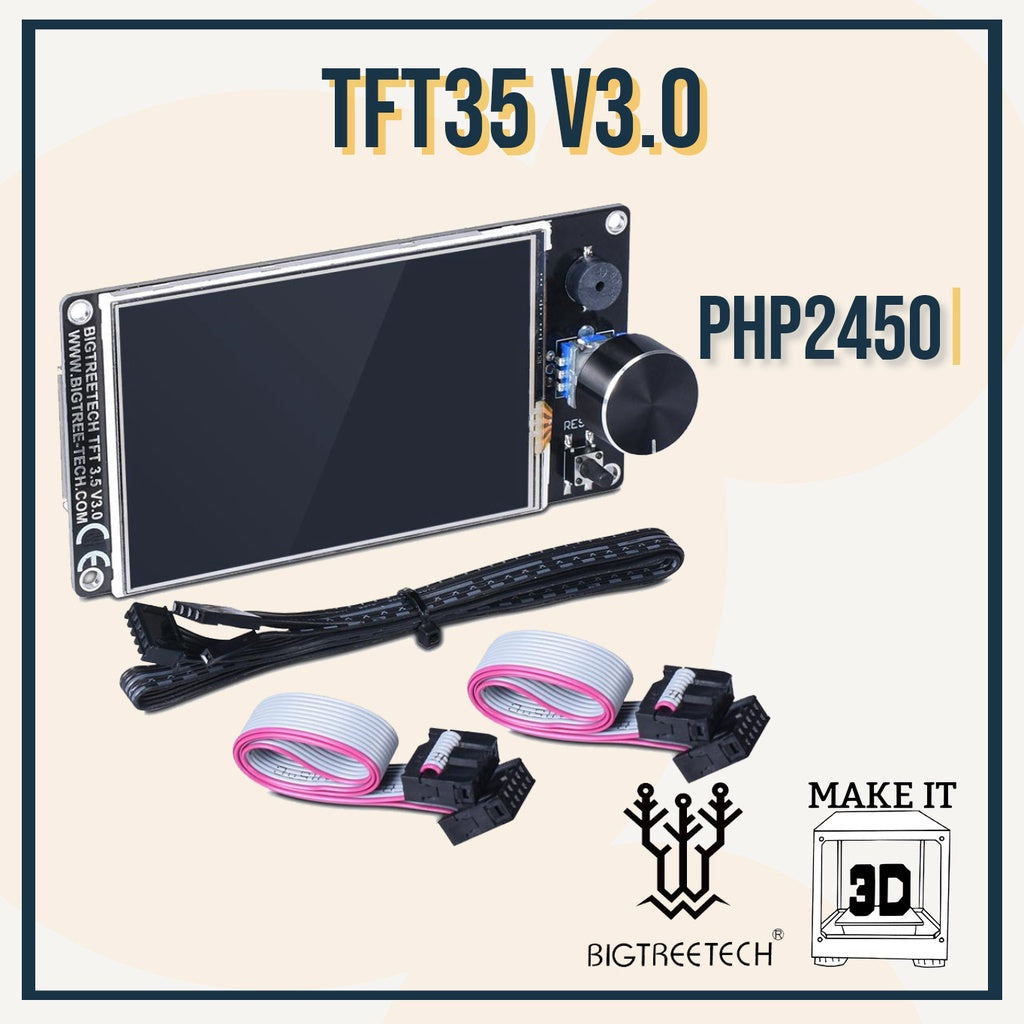

✨ BIGTREETECH TFT35 and E3 V3.0 Touching Screen

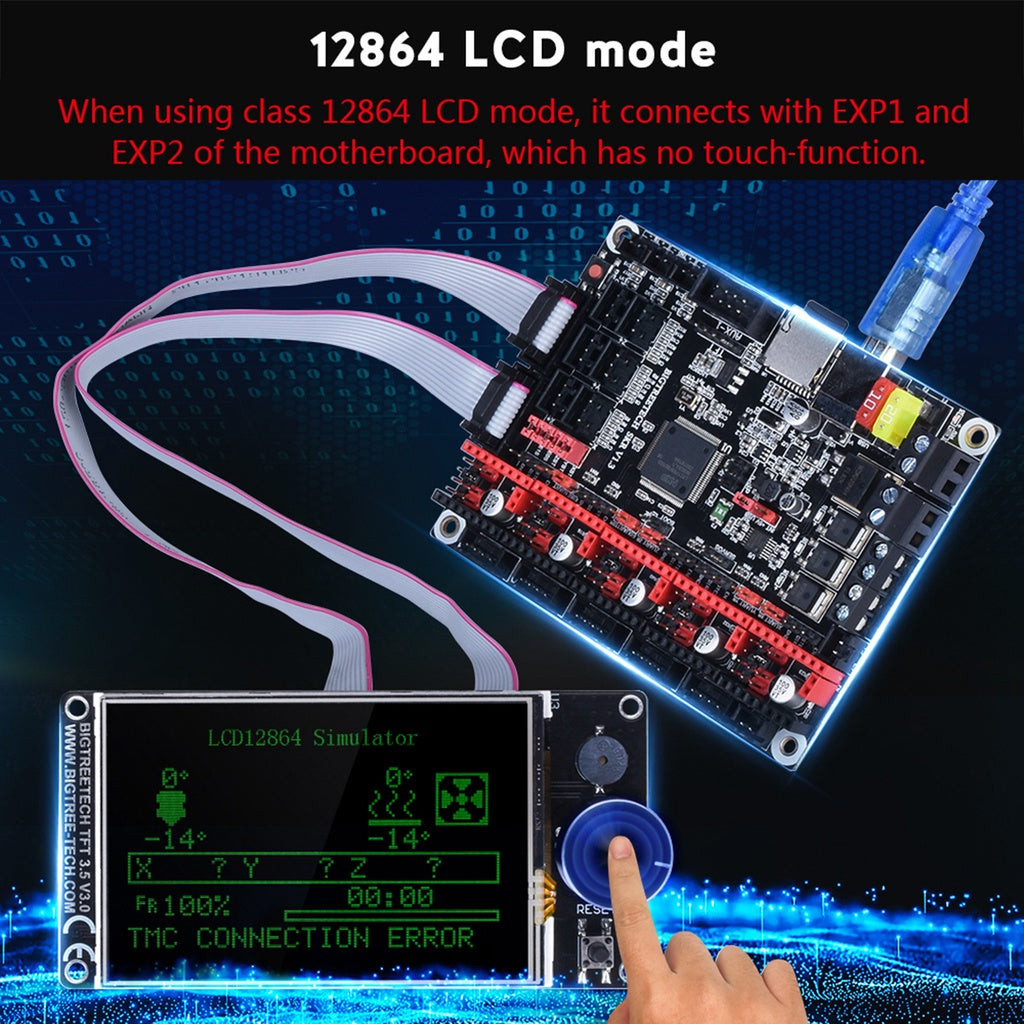

> Compatible with 12864 LCD Display WiFi TFT35 3D Printer Parts for Ender3 CR-10 SKR V1.4 MINI E3 (and other BIGTREETECH Boards)
> Main control chip: ARM Cortex-M3 series STM32F207VCT6 master controller with 32-bit main frequency of 120MHz.

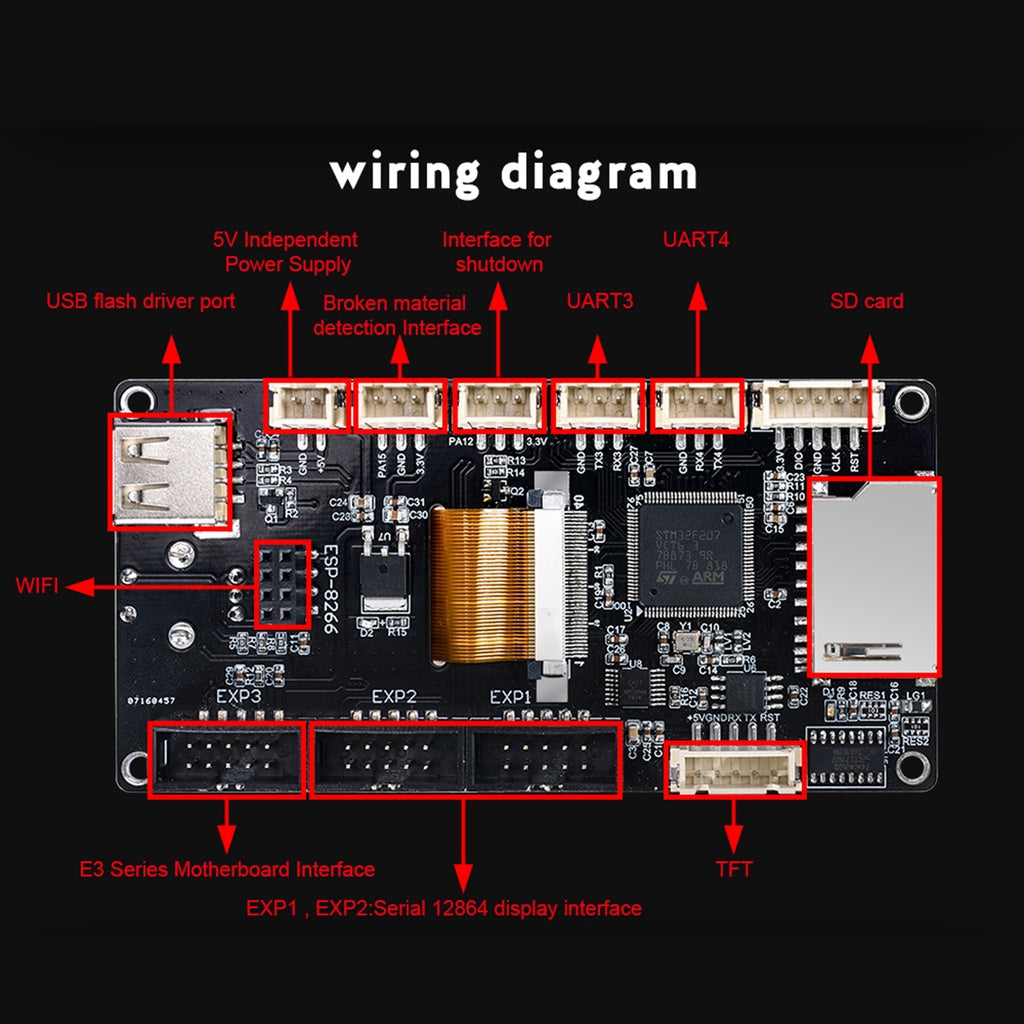

> Connect different wires according to the firmware you burned.
> Exquisite appearance, better lighting effect after optimization.
> Serial port screen mode supports two printing modes: S-D card and U disk.
> Reserve WiFi port, and WiFi function is realized by external WiFi module.

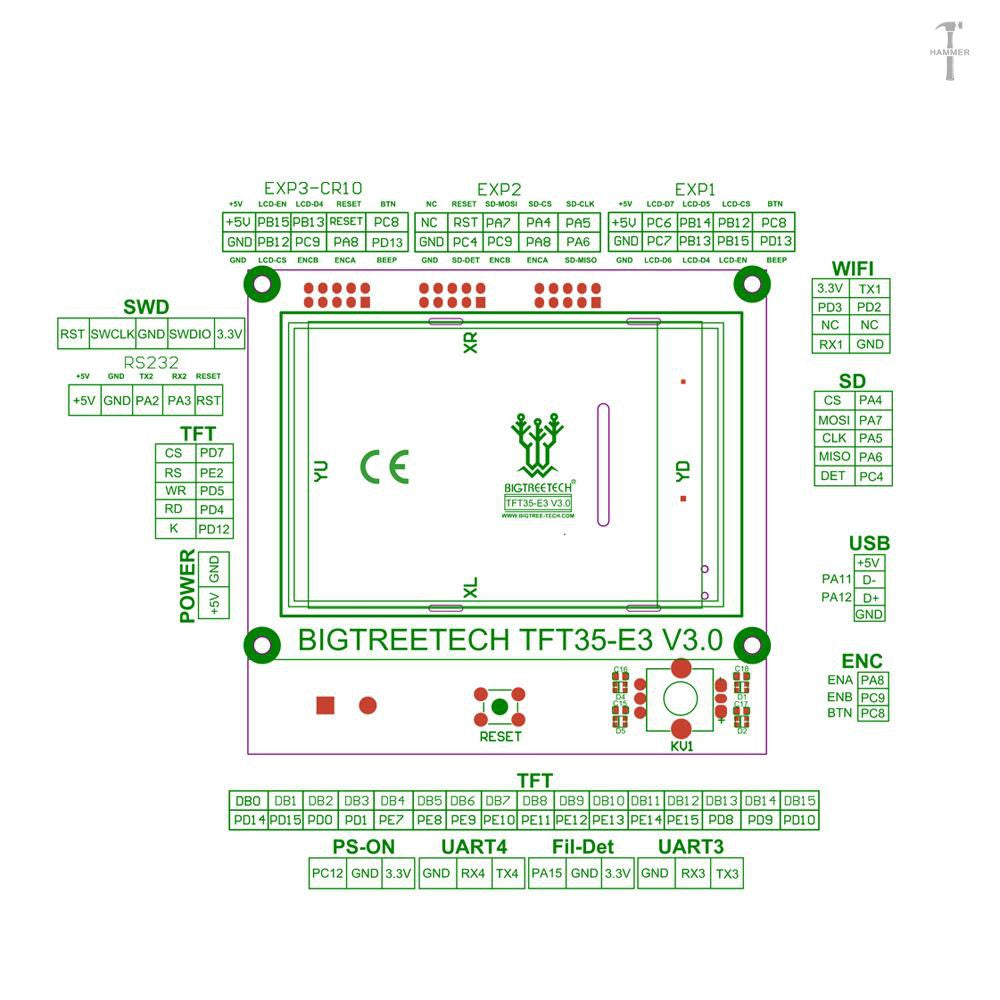

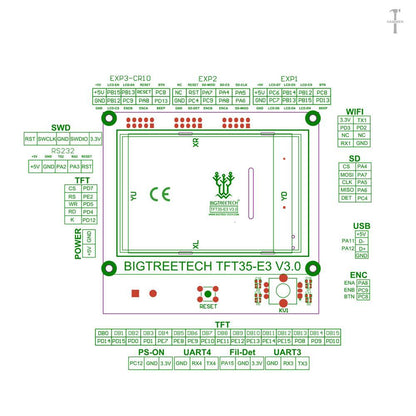

> 2 sets of UART serial port extension ports are reserved for DIY use.

TFT 35 Specifications:
Main material: PCB
Color: black
Microprocessor: STM32F207VCT6
Power input: DC 5V
S-D card logic voltage: 3.3V / 5V
Item size: 93 * 87mm
Item weight: 109g
Package size: 100 * 100 * 30mm
Package weight: 185g

Packing List:
1 * Display Screen
3 * Cable

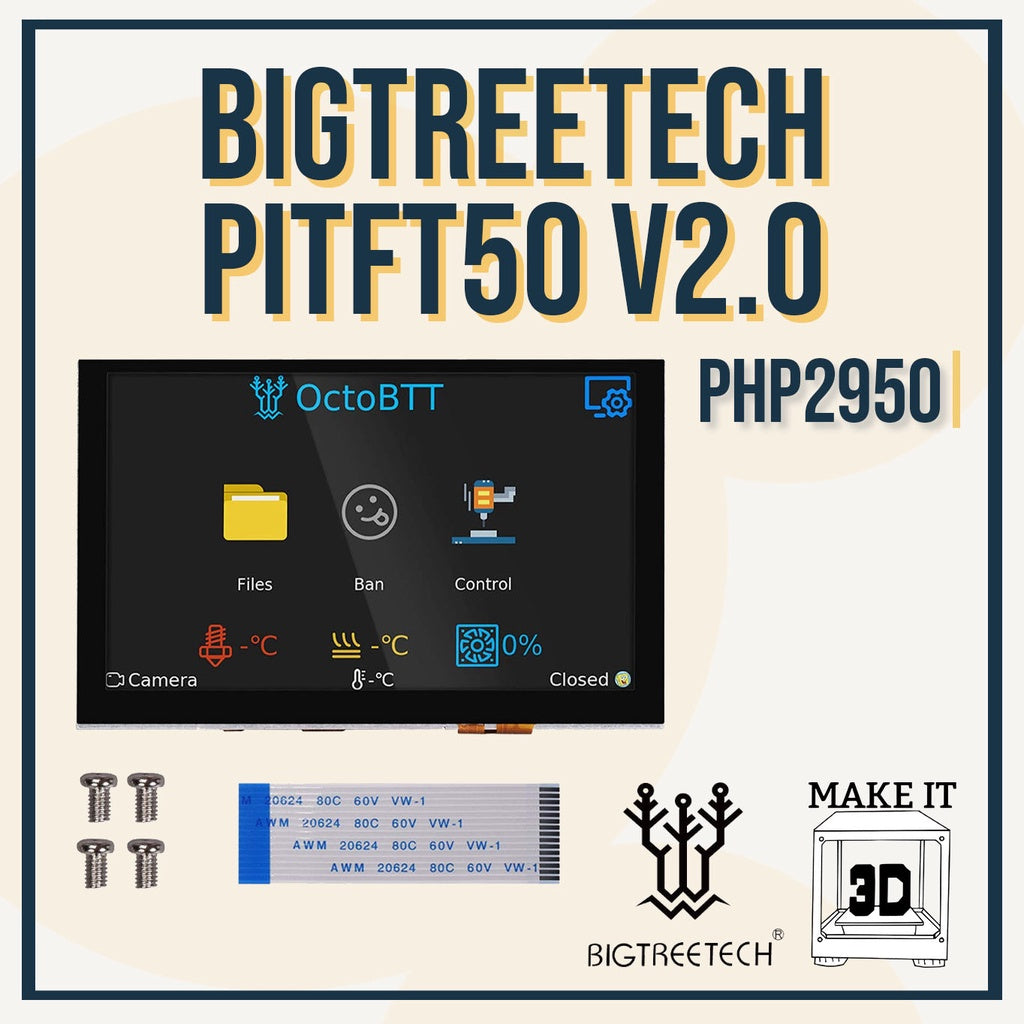

✨ PITFT50 V2
> 5in LCD touch screen
> 800 x 480 dpi resolution for raspberry pi.
> Adapts to Raspberry-Pi DSI display interface; supporting 5-point touch
> Uses Raspberry-pi power supply - no need for external power supply
> Supports hardware backlight adjustment that can be adjusted by rotating the potentiometer behind the screen.

PI-TFT50 V2.0 Technical Specifications:
Working Voltage: 3.3V (provided by Raspberry Pi display interface)
Maximum Working Current: 320mA
Screen Current: 100mA
Screen Resolution: 800*480
Video Interface: Raspberry Pi DSI
Touch Points: 5 points
Viewing Angle: 60°/70°/70°/70°
RGB888-16 Trillion True Color
Refresh Rate: 60Hz
Luminous Rate: 280 cd/m2
Working Temperature: -20℃-70℃
Dimensions: 121mm x 76mm
Mounting Hole Size: M2.5
Outer Mounting Hole Position: 113mm x 68mm
Inner Mounting Hole Position: 58mm x 49m
